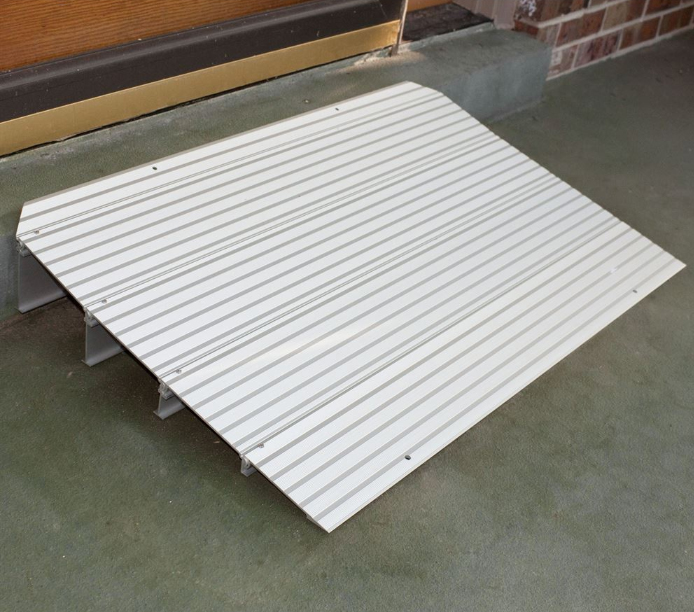

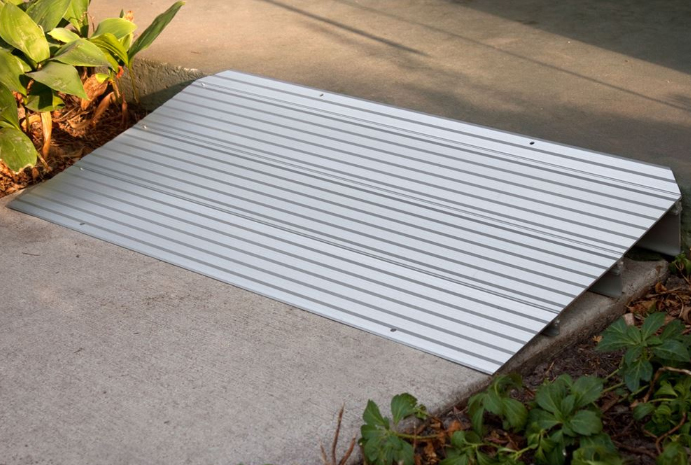

HT60101-HT60107 Aluminium Modular Threshold Ramp

Manufactured from high-strength, lightweight aluminium.
Available in 7 lengths to accommodate rises up to 6-1/4" high.
Textured extruded aluminium surface for increased traction.
Pivoting top extension plate provides smooth transition from ramp to doorway or landing.
Includes pre-drilled holes for optional permanent mounting.
Modular design is easy to assemble.
ModelCapacityMin. RiseMax. RiseRamp Size (LXW)N.W. (KG)G.W. (KG)Package Size (CM)
HT60101600LB3/4"1-1/4"6-5/8 X 34"1.41.688.5X15.5X4.5
HT60102600LB1-1/4"1-3/4"9-1/8" X 34" 1.72.089.5X20.5X5
HT60103600LB1-3/4"2-1/4"11-5/8" X 34"2.72.989X15X4.5
HT60104600LB2-3/4"3-1/4"16-5/8" X 34" 4.14.488X17X5
HT60105600LB3-3/4"4-1/4"21-5/8" X 34" 5.65.990X15X6.5
HT60106600LB4-3/4"5-1/4"26-5/8" X 34"7.37.789X17.5X8
HT60107600LB5-3/4"6-1/4"31-5/8" X 34"9.29.889X18X11.5
